5mm Hole Size Mini Through Hole Precision Slip Ring 2-12circuits Signal For Each Wires Is 2A
Description of H0522 Through Hole Slip Ring
The SenRing H0522 series is a miniature through-hole conductive slip ring with a through-hole diameter of 5mm (suitable for any rotating device with a diameter of ≤5mm) and an outer diameter of 22mm. The H0522 series is a precision conductive device with a small aperture, small current, and miniature integral structure that can stably transmit 5A current (multiplied by 5A) or 2A signals.
Features of H0522 Through Hole Slip Ring
1. IP grade IP51(can be customized IP51~IP68);
2. Standard model supports 2-12 circuits(5A/10A/30A) current; current and channels can be customized;
3. Small OD size,stable performance, long lifertime;
4. Standard product, stocks available;
5. Support transmitting power with signals ;
6. Integrated structure design, easy installation.
Application:
It can be used in various devices that require 360-degree rotating conduction or transmission of various control signals, such as LED stage lights, rotatable LED outdoor lighting, intelligent home security robot systems, rotatable LED wall lights, and intelligent robots.
Technical Specification of H0522 Through Hole Slip Ring
| Working Life | refer to slip ring grade table |
| Rotating speed | refer to slip ring grade table |
| Working Temp. | -30°C~80°C |
| Work Humidity | 0~85% RH |
| Contact Material | refer to slip ring grade table |
| Housing Material | AL alloy |
| Torque | 0.05N.m+0.02N.m/6 wire |
| IP Grade | IP51 |
| Spec. | Power | Signal |
| Voltage Range | 0~240VAC/VDC | 0~240VAC/VDC |
| Insolution Resistance | ≥500MΩ/500VDC | ≥500MΩ/500VDC |
| Lead wire Spec. | AWG28# Silver-plated teflon | AWG28# Silver-plated teflon |
| lead wire length | standard length 300mm(can be customized) |
| Dielectric Strength | 500VAC@50Hz,60s |
| Electrical Noise | < 0.01Ω |

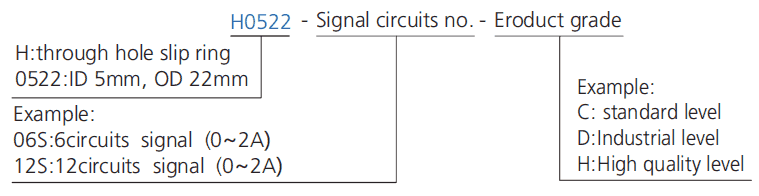

Part no. description

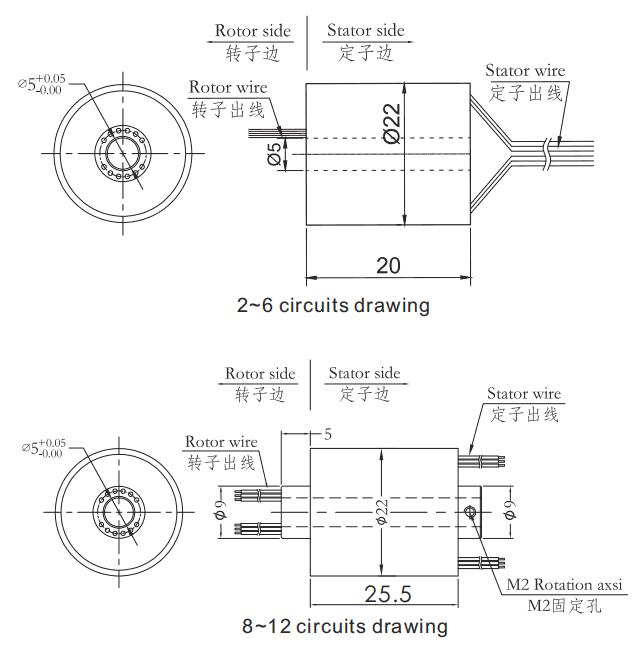

Drawing
Standard model list
| H0522-02S | 2 | 20 |
| H0522-03S | 3 | 20 |
| H0522-04S | 4 | 20 |
| H0522-06S | 6 | 20 |
| H0522-08S | 8 | 25.5 |
| H0522-10S | 10 | 25.5 |
| H0522-12S | 12 | 25.5 |
H0522 Grade Table
| C(Standard) | 250RPM | 20 millions revolutions | precious metal |
| D(Industrical) | 600RPM | 80 millions revolutions | precious metal |
| H(High Quality) | 1000RPM | 150 millions revolutions | gold alloy |
If you want to costomize the special slip ring model, you need provide details as below:
a. operatring speed(RPM)
b. the type of installation
c. outline size
d. channels(the No. of single wire besides cable)
e. rated voltage & current for power rings and signal rings
f. the signal type and related
p. arameters(very important)
g. operating temperature
h. IP(sealing requirements)
|
|
