Miniature Capsule Slip Ring OD 12.5mm 6~18circuits Signal@1.5A Or 2~4circuits@5A
Description of M125 Capsule Slip Ring
The SenRing M125 series 360-degree rotating conductive cap slip ring has a main body outer diameter of 12.5mm and a length option of 13.5mm to 23.5mm. It is a micro cap slip ring specifically developed for small consumer electronics. The core process of the M125 series cap adopts gold-gold contact points, ensuring stability and long service life. The rotating end wire and the static end wire correspondingly use 24-colored color-coded wires, which is more convenient for wiring operations. The conductive ring adopts a 90-degree V-groove design, which allows for more contact surface, smoother rotation, lower torque, and lower dynamic resistance.
Features of M125 Capsule Slip Ring
1. OD 12.5mm, Length 13.5mm~23.5mm;
2. 6~18circuits signal@1.5A or 2~4circuits@5A,;
3. low torque, less than 0.06N.m;
4. Standard product, stocks available;
5. Flange A type, C type, without flange optional;
6. Integrated structure, easy installation.
Technical Specification of M125 Capsule Slip Ring
| Working Life | 10millions for ref(depends on working conditions) |
| Rotating speed | 250RPM |
| Working Temp. | -30°C~80°C |
| Work Humidity | 0~85% RH |
| Contact Material | precious metal:gold-gold |
| Housing Material | engineered plastic |
| Torque | 0.05N.m+0.01N.m/6 wire |
| IP Grade | IP51 |
| Spec. | Power | Signal |
| Voltage Range | 0~240VAC/VDC | 0~240VAC/VDC |
| Insolution Resistance | ≥200MΩ/300VDC | ≥200MΩ/300VDC |
| Lead wire Spec. | refer to model list | refer to model list |
| lead wire length | standard length 150mm(can be customized) |
| Dielectric Strength | 300VAC@50Hz,60s |
| Electrical Noise | < 0.01Ω |
| IP Grade | IP51 |

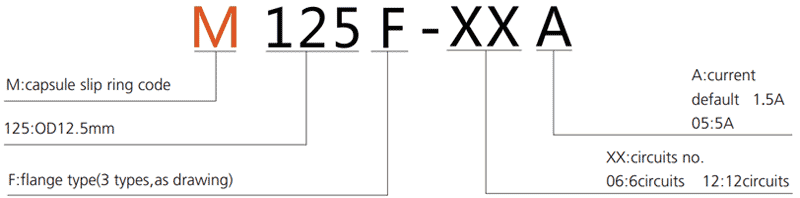

Part no. description
Drawing
Standard model list
| M125-06 | 6 | 1.5A | Silver-plated teflon AWG30# | 13.5 |
| M125-12 | 12 | 1.5A | Silver-plated teflon AWG30# | 18.2 |
| M125-18 | 18 | 1.5A | Silver-plated teflon AWG30# | 23.5 |
| M125-0205 | 2 | 5A | Silver-plated teflon AWG22# | 13.5 |
| M125-0305 | 3 | 5A | Silver-plated teflon AWG22# | 18.2 |
| M125-0405 | 4 | 5A | Silver-plated teflon AWG22# | 18.2 |
